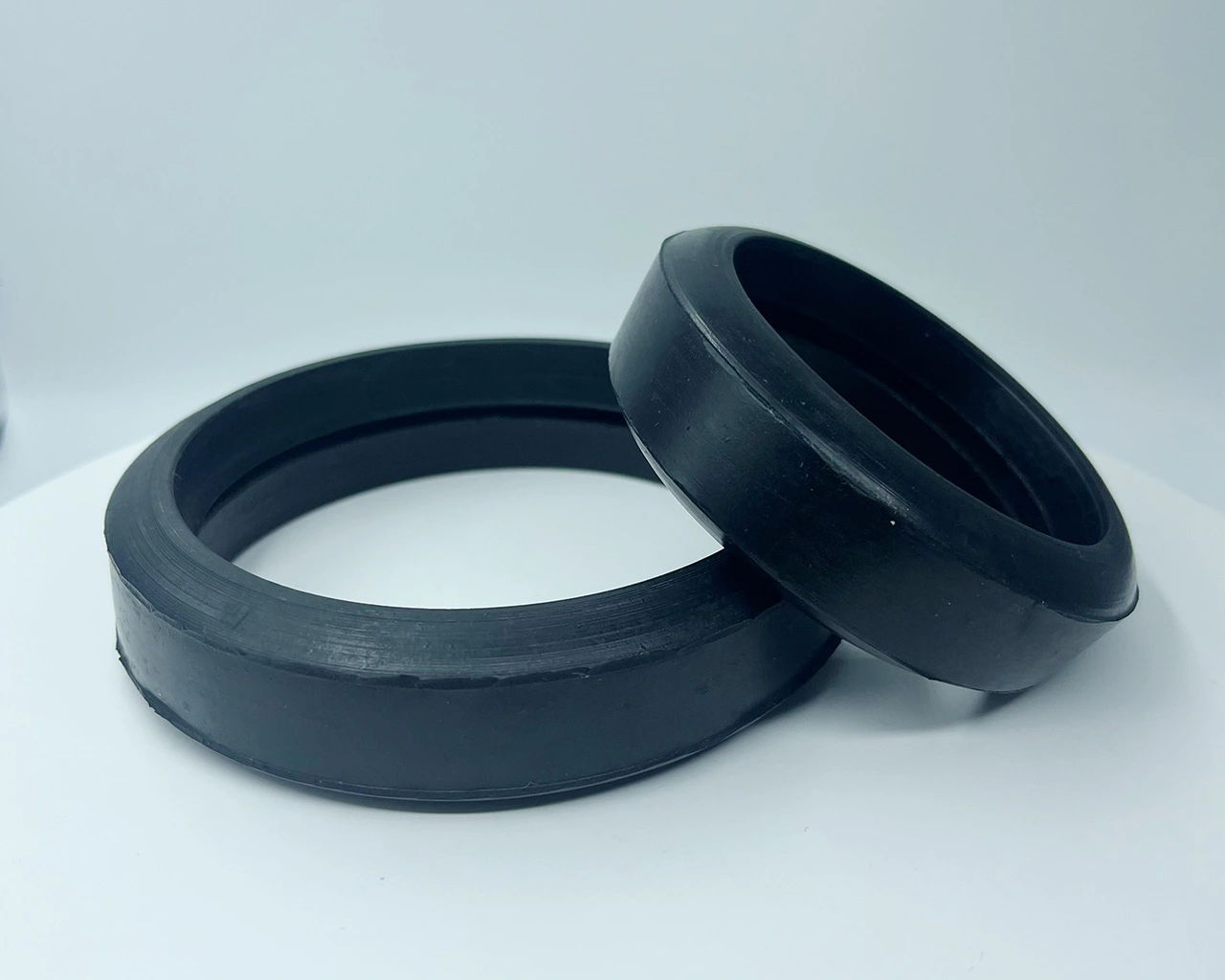

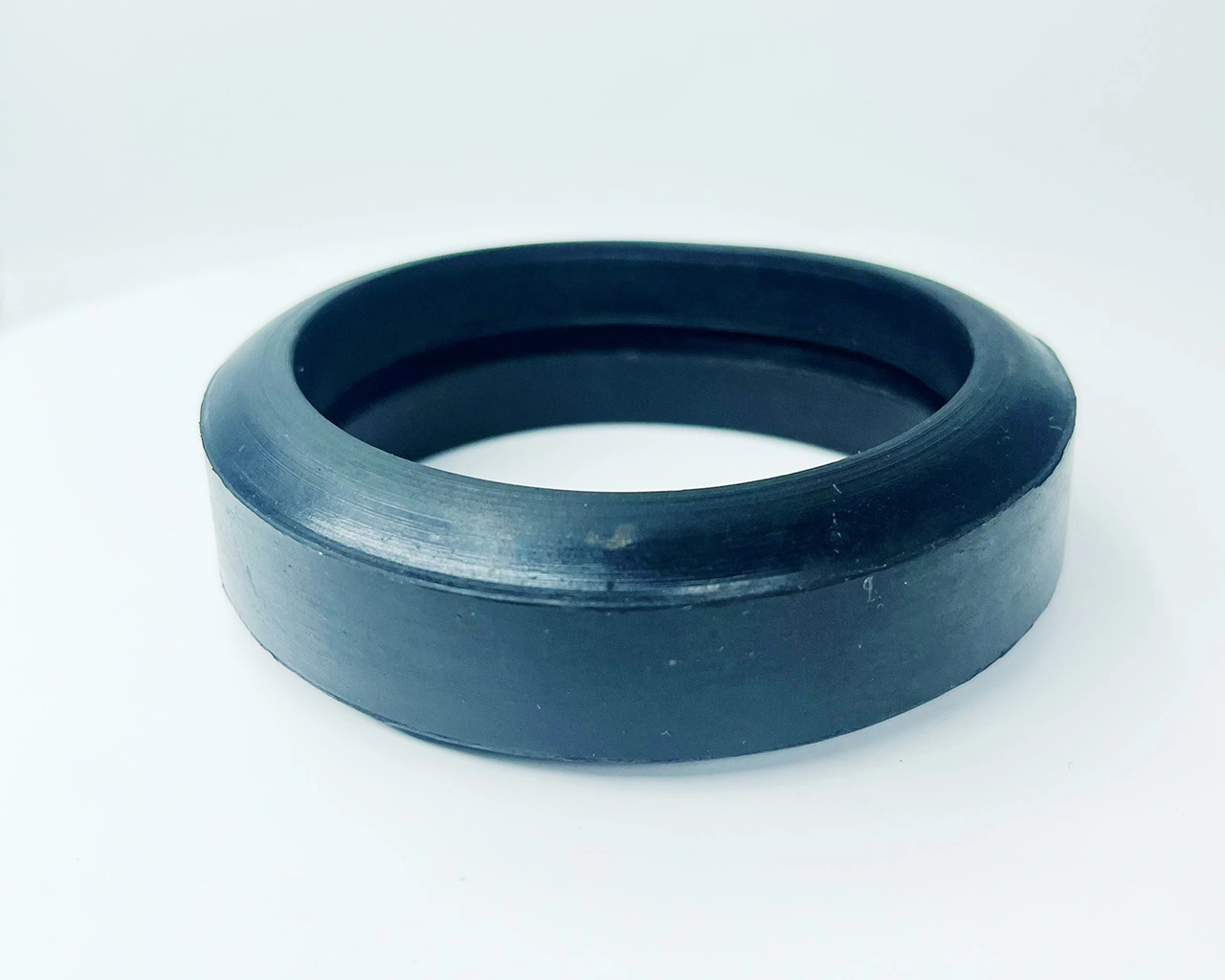

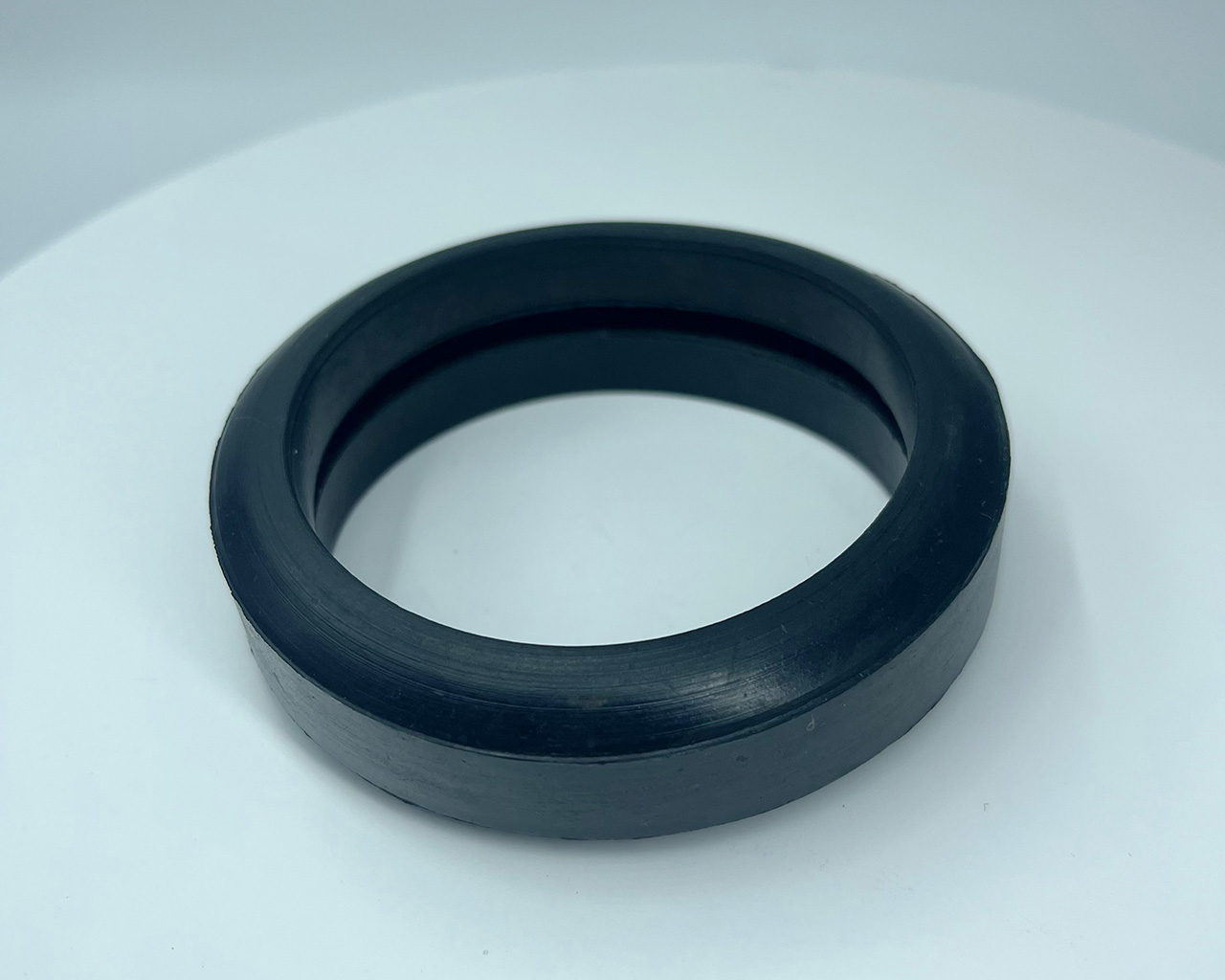

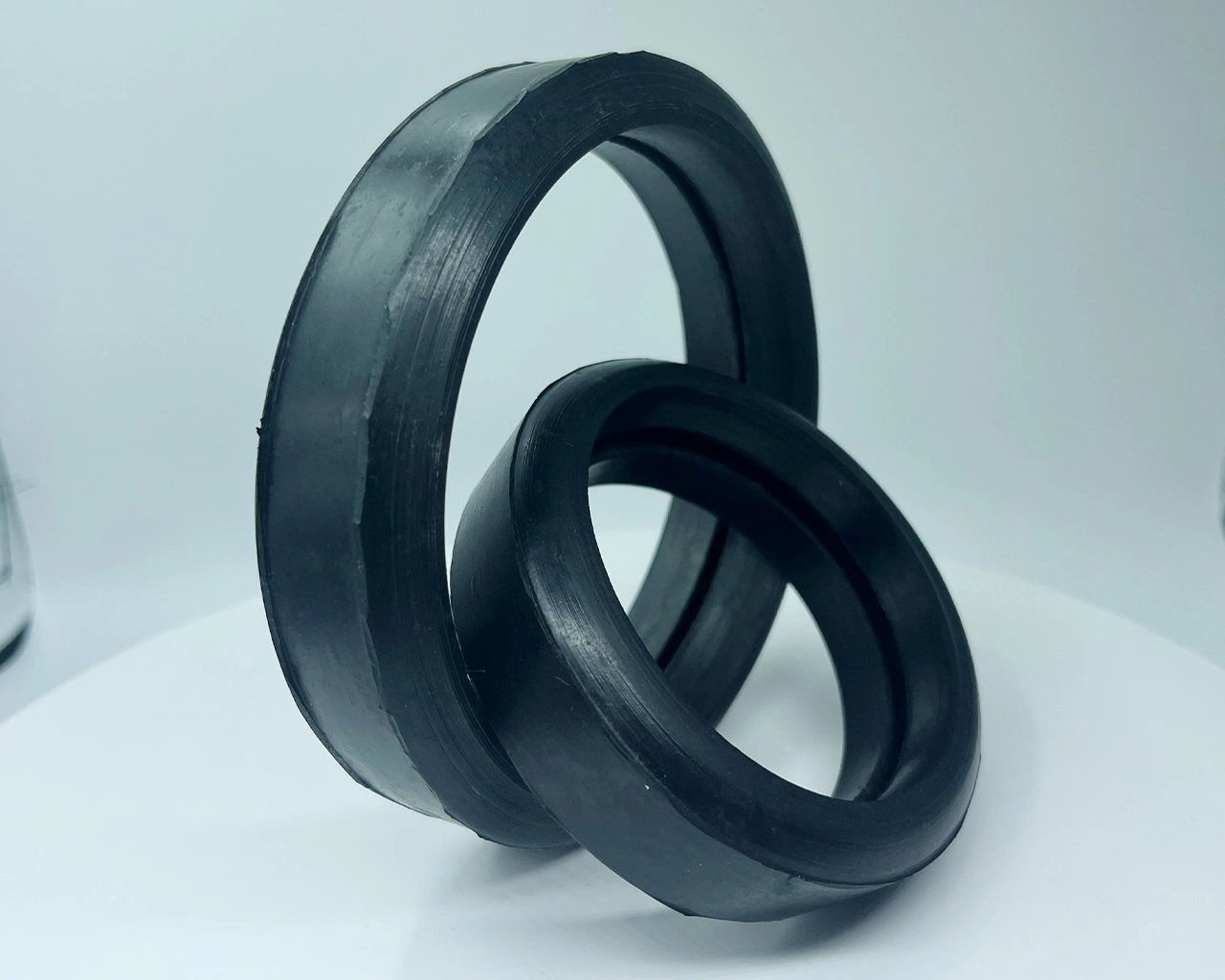

Pipe fitting groove clamp sealing ring (copy Lin sealing ring)

Groove clamp is a type of pipe joint accessory, which is a connecting device used to connect pipe fittings, valves, and pipeline fittings with grooves. It is used to tighten the connection between quick couplings. Generally, the joint is equipped with gaskets and rubber sealing rings (groove clamp rubber gasket)

Quantity:

Contact Now

add to cart

OEM Pipe fitting groove clamp sealing ring Water treatment pipe clamp manufacturer-Hongtai

As a specialized fastening accessory for pipeline connections, groove clamps are an important component for achieving fast and reliable connections in pipeline systems. Its main function is to assemble and fix fittings with standard grooves, various valves, and other supporting pipeline accessories, playing a role in clamping, positioning, and strengthening connections between quick connectors, ensuring that the entire pipeline system maintains structural stability and functional reliability during operation.

Product Specifications：

model	Specifications
2inch	73×50×24
2.5inch	90×70×26
3inch	103×83×26
4inch	120×100×28
5inch	150×126×28
6inch	170×150×30
8inch	230×210×28
10inch	280×255×32
12inch	340×310×33
14inch	360×325×35
16inch	395×368×35
18inch	480×450×40
20inch	540×500×40

In typical design structures, groove clamps are usually used in conjunction with specialized gaskets and rubber sealing rings, among which rubber sealing rings are also known as groove clamp rubber pads, which undertake critical sealing tasks. The rubber sealing ring can adhere to the contact surface between the end of the pipe and the groove under the uniform pressure applied by the clamp, forming a complete annular sealing barrier, effectively preventing leakage of liquid or gas media during transportation.

At the same time, we also sell this product

Compared to traditional flange connections, threaded connections, or welding methods, groove clamps have significant advantages in installation and maintenance. During installation, there is no need for complex welding equipment or threading tools. Only groove processing is required for the pipeline, and then on-site assembly with clamps and rubber sealing rings can complete the connection, greatly shortening the construction period and reducing the technical threshold for operators. At the same time, this connection method has good disassembly and assembly, which facilitates the maintenance, renovation, or partial replacement of the pipeline system in the later stage, helping to reduce the operation and maintenance costs throughout the entire lifecycle.

Based on the above structural characteristics and usage advantages, groove clamps have been widely used in multiple engineering fields, including but not limited to building fire sprinkler systems, urban water supply and drainage pipelines, industrial production circulating water systems, HVAC chilled water and cooling water pipelines, etc. In modern pipeline engineering, groove clamps have become an indispensable and efficient connecting component, with high standardization and wide applicability. They can meet the sealing and fastening requirements under different working conditions and provide reliable guarantees for the safe operation of pipeline systems.

We provide high-quality OEM services. Please feel free to contact us if you have any questions or needs.

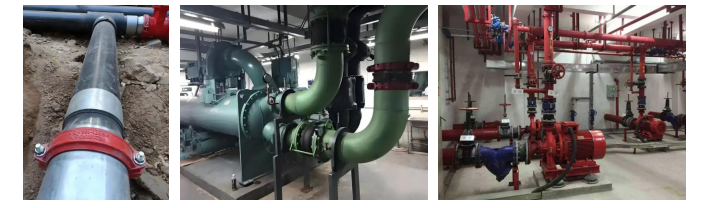

Application scenarios
