Sealed and leak proof high-quality rubber flange gasket-Hongtai

Valve sealing ring (rubber flange gasket)

Valve sealing ring is a component installed inside or outside the valve to maintain its sealing performance. Its main function is to prevent medium leakage when the valve is closed, ensuring that fluid flows only in the desired direction. Valve sealing rings are usually made of elastic materials such as rubber, which have good characteristics such as heat resistance, corrosion resistance, and wear resistance.

Quantity:

Contact Now

add to cart

Sealed and leak proof, high-quality rubber flange gasket-Hongtai

The valve sealing ring is a key sealing component installed inside the valve or on a specific mating surface (such as the connection between the valve cover and the valve body). Its main function is to effectively prevent medium leakage when the valve is closed, ensuring that fluid flows only in the design direction, thereby ensuring the opening and closing performance of the valve and the safe operation of the entire pipeline system. The sealing ring also plays an auxiliary role in buffering vibration, compensating assembly tolerances, and reducing opening and closing impact forces.

Product Specifications：

model	Specifications
2inch	95×50×3
3inch	116×75×3
4inch	145×96×3
5inch	195×125×4
6inch	220×150×4
8inch	265×200×5
10inch	310×250×5
12inch	370×300×5

Our valve sealing rings are made of high-quality rubber. These materials endow the sealing ring with excellent heat resistance, corrosion resistance, and wear resistance, and can adapt to various harsh working conditions from low to high temperatures, from water, oil, gas, to acidic and alkaline solvents.

It should be noted that there are essential differences between flange gaskets and valve sealing rings in terms of structural function, installation position, and force distribution. Flange gaskets are mainly used at the connection between two flanges to seal the pipeline interface by filling the small gap between the flange end faces, preventing liquid or gas leakage at the connection point. Gaskets usually bear axial compression force, and their sealing effect depends on the uniform distribution of bolt preload force.

At the same time, we also sell this product

However, in practical engineering communication or daily context, some practitioners often refer to valve sealing rings as"flange gaskets"in general. Although this term is not rigorous enough, it has been widely circulated due to language habits and the need for simplified expression on site. Understanding this difference helps engineering and technical personnel to select and communicate more accurately during equipment procurement, maintenance and replacement, and drawing review, avoiding selecting the wrong seal due to name confusion, which may lead to leakage accidents or equipment failures.

In terms of selection and maintenance, it is recommended to choose the material and structural form of the valve sealing ring reasonably based on the medium type, working temperature, pressure rating, and valve opening and closing frequency. At the same time, the sealing ring should be regularly checked for signs of aging, hardening, deformation, or tearing, and replaced in a timely manner according to equipment instructions or standard specifications to ensure long-term reliable operation of the valve.

We provide high-quality OEM services. Please feel free to contact us if you have any questions or needs.

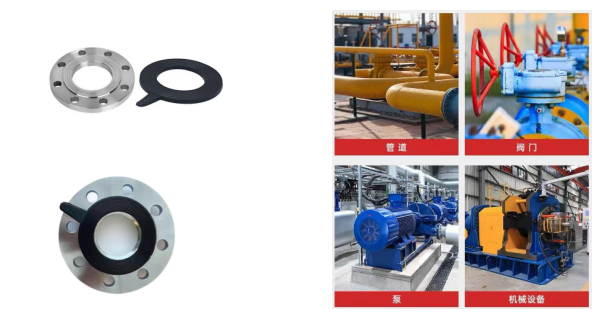

Application scenarios
